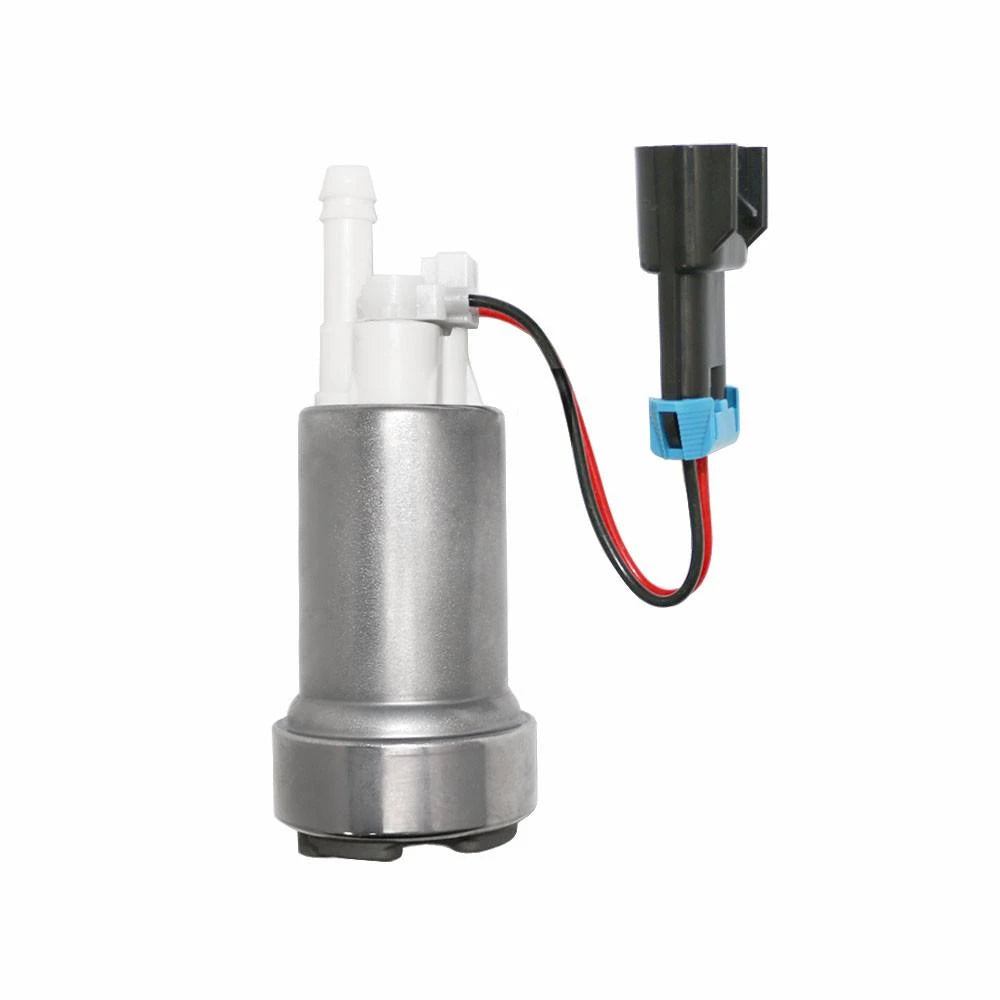

Walbro 525 (F90000285) 525LPH - Hellcat Fuel Pump

This is the innovative Walbro F90000285 39/50 Fuel Pump. This DCSS 39/50 pump features a single impeller with two parallel rows of turbine blades. F90000285 is designed for high performance and supports 800 horsepower engines. With a super charger the exceptional dual pumping channel design delivers maximum pressure with superior fuel flow. The F90000285 operates with a flex fuel system and comes with a check valve to avoid system leak-down and extended cranking at start-up. This superior design results in improved hot fuel flow as well as minimal noise. This increases efficiency by 20% over conventional pumps, delivering unparalleled performance.

Features:

Capable of supporting 900+HP at 60 psi naturally aspirated applications

E85 compatible

Featuring award winning DCSS technology

High pressure relief setting with support supercharger and turbo applications

Internal check valve

Recommended for boosted: Yes

Specifications:

Pump type: In-tank

Fuel type: Flex

Flow: 525 lph

Flow Rate: 470 lph @ 40 psi

Fuel Pressure: 40 psi

Horsepower: 800

Maximum working pressure: 125

Amperage rating: 19.0 @ 40 psi

Test Voltage: 13.5 Volts

Inlet:

Size: 11.00 mm

Type: Turbine inlet

Outlet:

Size: 11.00 mm

Type: Dual barbed
